Level Gauge

• Accuracy
• +- 1.6% F.S./class 1.6

• Application
• Other, Tank Level Measurement

• Case
• Stainless Steel

• Display
• Analog with Pointer

• Glass Size
• 4 mm mineral glass

• Grade
• Industrial Grade

• Material
• Stainless Steel

• Measuring Range
• 0 - 800 mmWG upto 0 - 10.000 mmWG

• Outer Size
• 160 mm (Model 160)

• Working Presssure
• Atmospheric / as per gauge spec

• Accuracy
• 1% FSD

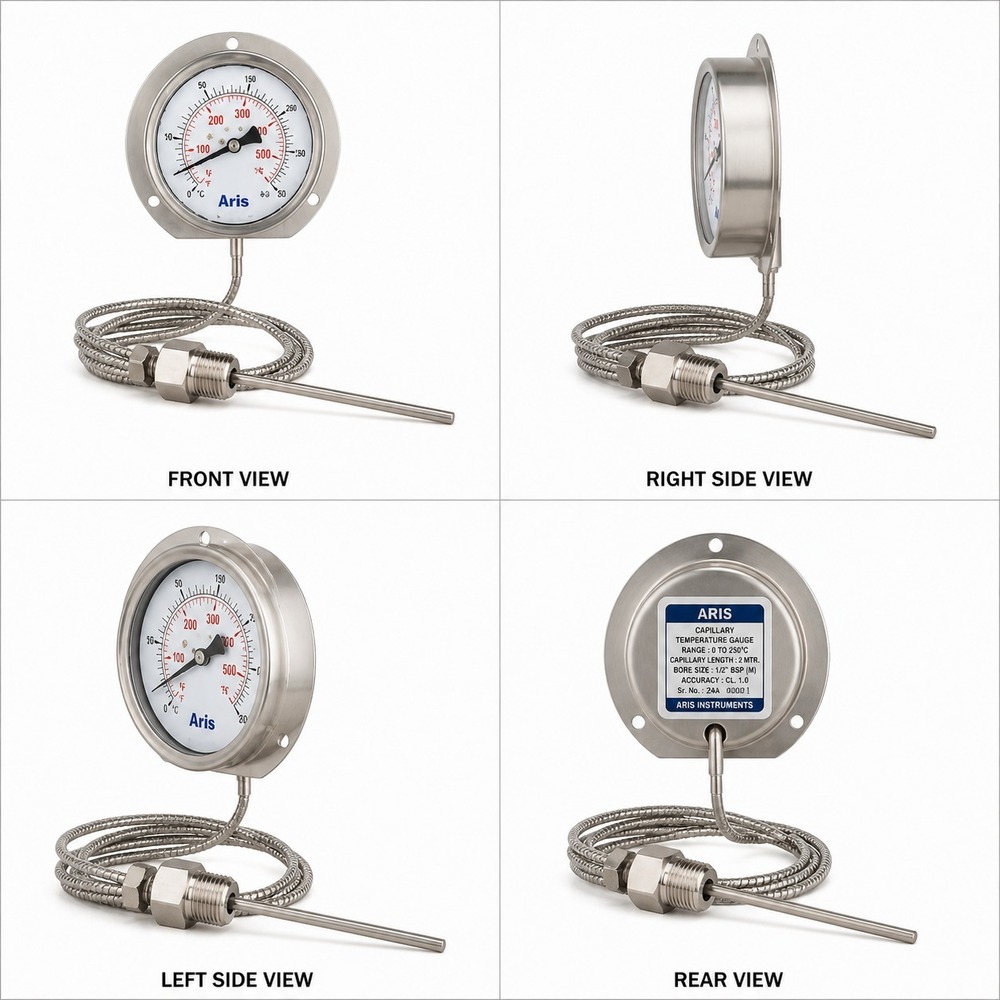

• Application
• Other, Industrial temperature monitoring (chemical, pharmaceutical, power plants, HVAC, and more)

• Bourdon Tube
• Stainless Steel

• Case
• Stainless Steel

• Display
• Analog, pointer type

• Glass Size
• Full dial window, approx. 100 mm

• Grade
• Industrial

• Material
• Stainless Steel, Brass (wetted parts option)

• Measuring Range
• 0C to 250C (customizable as per requirement)

• Outer Size
• 100 mm dial size

• Seal Material
• PTFE or rubber gasket

• Sensor Type
• Capillary Thermometer

• Thread
• 1/2 BSP (M) or as per demand

• Working Presssure
• Atmospheric

• Accuracy
• 10 mm, typical

• Application
• Other, For continuous level indication in tanks and vessels, used in chemical, oil, water, and process industries

• Case
• Stainless Steel / Aluminum

• Display
• Magnetic Roller/Flap Indicator with Scale

• Frequency
• N/A (Indicator Design)

• Glass Size
• Indicator Scale Length matches measuring range

• Grade
• Industrial

• Material
• SS304 / SS316 / PP (Based on application)

• Measuring Range
• 300 mm to 6000 mm (customizable)

• Outer Size
• Diameter 38 mm / 50 mm (depending on model)

• Seal Material
• PTFE / Viton / Neoprene (as per process)

• Sensor Type
• Magnetic Float

• Thread
• Flanged/Threaded Connection

• Working Presssure
• Up to 25 bar

• Accuracy
• 10 mm

• Application
• Other, Liquid level measurement in tanks (Chemical, Petroleum, Water, etc.)

• Case
• Mild Steel/ Stainless Steel

• Display
• Manual board indicator (Numbered scale)

• Frequency
• Not applicable (mechanical device)

• Grade
• Industrial Grade

• Material
• Stainless Steel 304, SS316, MS, PP, PVC

• Measuring Range
• Up to 20 meters

• Outer Size
• Custom sizes available

• Seal Material
• EPDM/NBR/PTFE options

• Sensor Type
• Float & Board Type

• Thread
• Customizable as per requirement

• Working Presssure
• Atmospheric pressure

• Accuracy
• 5 mm

• Application
• Other, Liquid Level Indication in Tanks / Vessels / Industrial Processes

• Case
• SS304 / SS316 / PP

• Display
• Magnetic Roller / Flag Indication

• Glass Size
• As per process connection

• Grade
• Industrial Grade

• Material
• Stainless Steel (SS304 / SS316) or PP

• Measuring Range
• Up to 5000 mm

• Outer Size
• Customizable / As per process requirements

• Seal Material
• PTFE / Graphite / As required

• Sensor Type
• Magnetic

• Thread
• As per requirement / Customized

• Working Presssure
• Up to 40 kg/cm2
