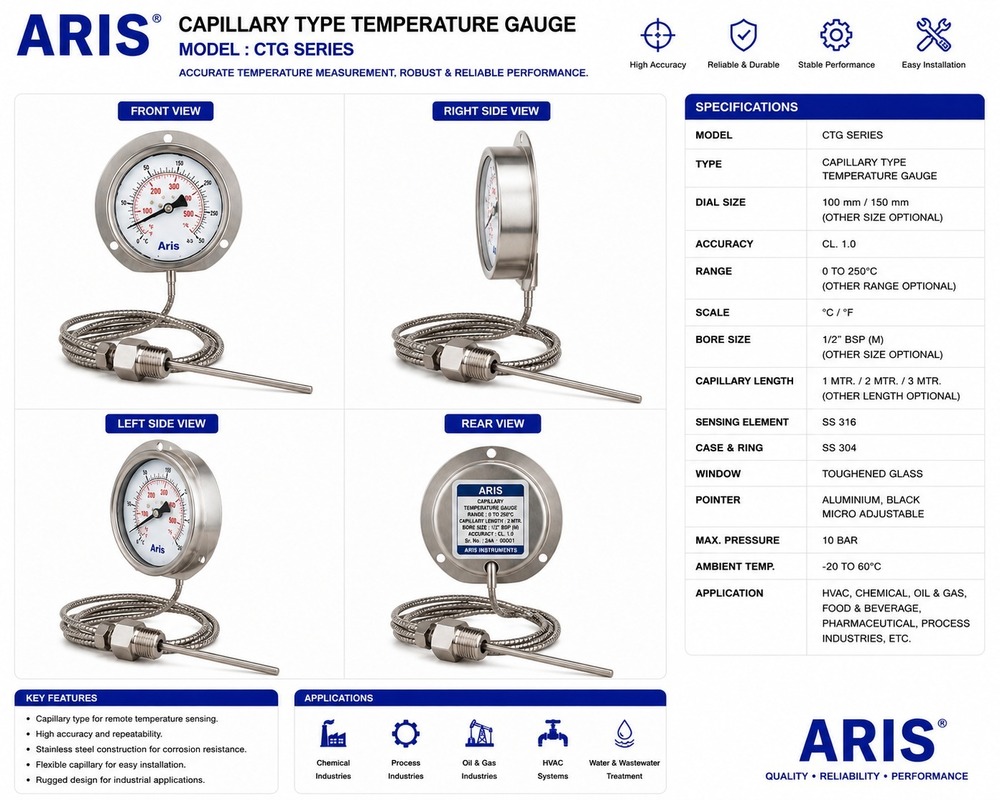

Capillary Type Temprature Gauge

Capillary Type Temprature Gauge Price And Quantity

• Minimum Order Quantity 1 Piece
• Price 1500 INR/Piece

Capillary Type Temprature Gauge Product Specifications

• Grade Industrial
• Case Stainless Steel
• Measuring Range 0C to 250C (customizable as per requirement)
• Working Presssure Atmospheric
• Thread 1/2 BSP (M) or as per demand
• Glass Size Full dial window, approx. 100 mm
• Material Stainless Steel, Brass (wetted parts option)
• Seal Material PTFE or rubber gasket
• Bourdon Tube Stainless Steel
• Outer Size 100 mm dial size
• Display Analog, pointer type
• Application Industrial temperature monitoring (chemical, pharmaceutical, power plants, HVAC, and more)
• Sensor Type Capillary Thermometer
• Accuracy 1% FSD

• Ambient Temperature Limit -20C to +60C
• Pointer Material Aluminum with black finish
• Dial Construction Hermetically sealed with glass front
• Filling Liquid Glycerin filled (optional)
• Sensor Diameter 6 mm / 8 mm / 10 mm (as per order)
• Mounting Type Bottom or back flange (custom options available)
• Ingress Protection IP-65 rated for dust and water protection
• Capillary Length 2 meters standard (extendable up to 10 meters on request)

Capillary Type Temprature Gauge Trade Information

• FOB Port ALL india
• Payment Terms Cash Advance (CA), Cash in Advance (CID)
• Supply Ability 1000 Piece Per Month
• Delivery Time 7 Days
• Sample Policy Contact us for information regarding our sample policy
• Main Export Market(s) Asia
• Main Domestic Market All India
