Actuator

• Ambient Temperature
• -20C to +80C

• Bearing Type
• Self-Lubricated Bearings

• Color
• Grey and Blue

• Cooling Method
• Not Applicable (Pneumatic Device)

• Current Type
• Not Applicable (Pneumatic Device)

• Dimension (L*W*H)
• Varies by Model

• Efficacy
• Double Acting & Spring Return Models

• Features
• Compact Design, Modular Construction, Maintenance Free, High Cycle Life, Visual Position Indicator, Anodized Aluminium Body, Corrosion Resistant

• Frequency (MHz)
• Not Applicable (Pneumatic Device)

• Horse Power
• Not Applicable (Pneumatic Device)

• IP Rating
• Other, IP67

• Motor Type
• Not Applicable (Pneumatic Device)

• Mounting Type
• ISO 5211 Mounting Interface

• Noise Level
• Low Noise Operation

• Output Power
• Not Applicable (Pneumatic Device)

• Phase
• Other, Not Applicable (Pneumatic Device)

• Poles Number
• Other, Not Applicable (Pneumatic Device)

• Power
• Operates on Compressed Air

• Power Rating
• Not Applicable (Pneumatic Device)

• Pressure
• Other, 2.5 to 8 Bar (Operating Pressure)

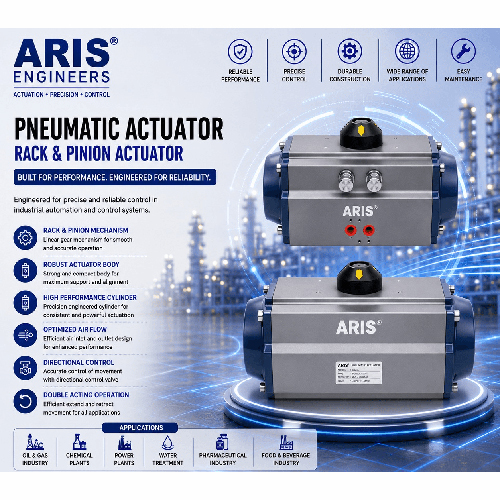

• Product Type
• Other, Rack & Pinion Pneumatic Actuator

• Protect Feature
• Other, Corrosion Resistant, Weather Proof

• Rated Frequency
• Not Applicable (Pneumatic Device)

• Rated Voltage
• Not Applicable (Pneumatic Device)

• Sealed Type
• Other, Weatherproof Sealing

• Shaft Diameter
• Standard (As Per Model)

• Speed
• Fast Acting (Opening/Closing)

• Standard
• ISO 5211, NAMUR

• Starting Type
• Direct Pneumatic

• Torque
• Up to 5000 Nm

• Voltage
• Not Applicable (Pneumatic Device)

• Weight
• As Per Model

• Application
• Industrial Automation, Valve Control

• Color
• Red

• Connection Type
• Direct Mount

• Connector Type
• Plug-in Terminals

• Efficiency
• High Efficiency Motor

• Energy Consumption
• Low energy consumption design

• Feature
• High Torque, Accurate Operation, Robust Construction, Reliable Performance

• Frequency (MHz)
• 50/60 Hz

• Humidity %
• 95% RH (non-condensing)

• IP Rating
• IP67

• Input Voltage
• 415V AC

• Insulation Material
• Class F Insulation

• Material
• Heavy Duty Metal

• Mounting Type
• Flange Mounting

• Operating Temperature
• -25C to +70C

• Output Type
• Multi-turn mechanical motion

• Phase
• 3 Phase

• Product Type
• Multi Turn Electrical Actuator

• Protection Level
• Other, IEC 34-5/IEC 529 IP67

• Rated Voltage
• 415V AC

• Shape
• Cylindrical with side output

• Size
• Standard/Customizable as per requirement

• Surface Finish
• Powder Coated

• Ambient Temperature
• -20C to +70C

• Color
• Blue

• Efficacy
• High

• Features
• Precise, Powerful, Reliable, Manual Override, Mechanical Position Indicator

• IP Rating
• Other, IP67

• Mounting Type
• ISO 5211 Connection

• Noise Level
• Low noise design

• Product Type
• Other, Quarter Turn Electric Actuator

• Protect Feature
• Other, IP67 Protection

• Sealed Type
• Other, Sealed construction with protection cover

• Standard
• ISO 5211

• Torque
• Up to 20,000 Nm
