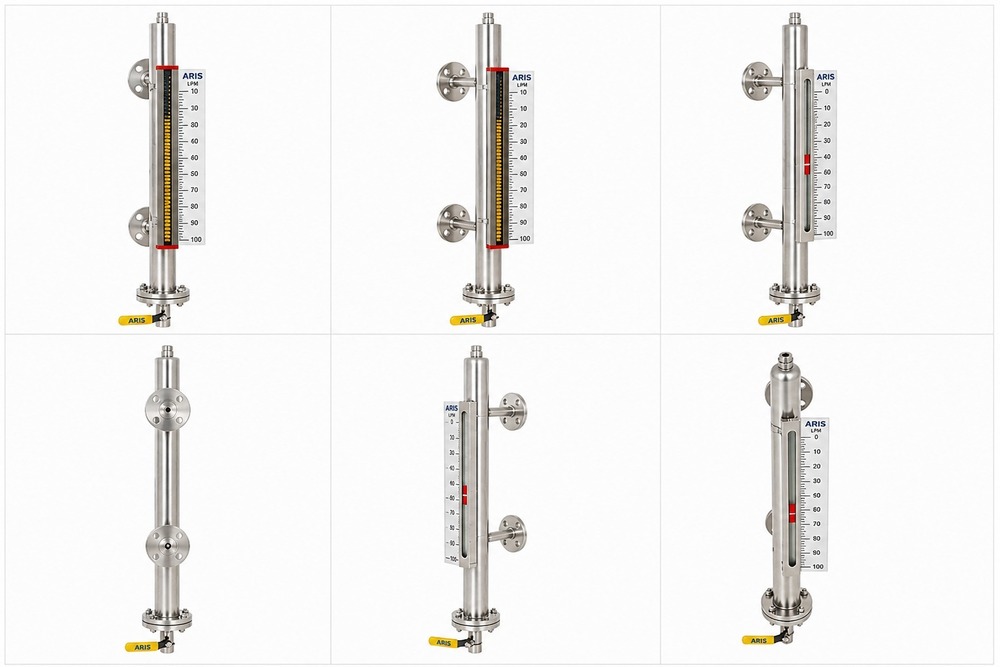

Magnetic Level Gauge

Magnetic Level Gauge Price And Quantity

• Price 9700 INR/Piece
• Minimum Order Quantity 1 Piece

Magnetic Level Gauge Product Specifications

• Sensor Type Magnetic Float
• Display Magnetic Roller/Flap Indicator with Scale
• Glass Size Indicator Scale Length matches measuring range
• Seal Material PTFE / Viton / Neoprene (as per process)
• Working Presssure Up to 25 bar
• Outer Size Diameter 38 mm / 50 mm (depending on model)
• Frequency N/A (Indicator Design)
• Case Stainless Steel / Aluminum
• Material SS304 / SS316 / PP (Based on application)
• Measuring Range 300 mm to 6000 mm (customizable)
• Application For continuous level indication in tanks and vessels, used in chemical, oil, water, and process industries
• Grade Industrial
• Accuracy 10 mm, typical
• Thread Flanged/Threaded Connection

• Medium Density Range Minimum 0.6 kg/l
• Scale Unit mm/cm/mtr as specified
• Process Connection Size 1" to 3" Flange, Customized as per requirement
• Indicator Visibility 180 (Standard)
• Alarm/Remote Transmitter Optional Switch Contacts or 4-20mA Output
• Operating Temperature -40C to +200C (depending on model)
• Surface Finish Matt / Mirror / Painted (Depending on specification)
• Chamber Material Thickness 3 mm (Standard)
• Float Material SS316 / Titanium / PP / PTFE (Based on service)
• Drain/Vent Options Available on request
• Mounting Orientation Side / Top Mounted

Magnetic Level Gauge Trade Information

• FOB Port ALL india
• Payment Terms Cash Advance (CA), Cash in Advance (CID)
• Supply Ability 100 Piece Per Month
• Delivery Time 7 Days
• Sample Policy Contact us for information regarding our sample policy
• Main Export Market(s) Asia
• Main Domestic Market All India
