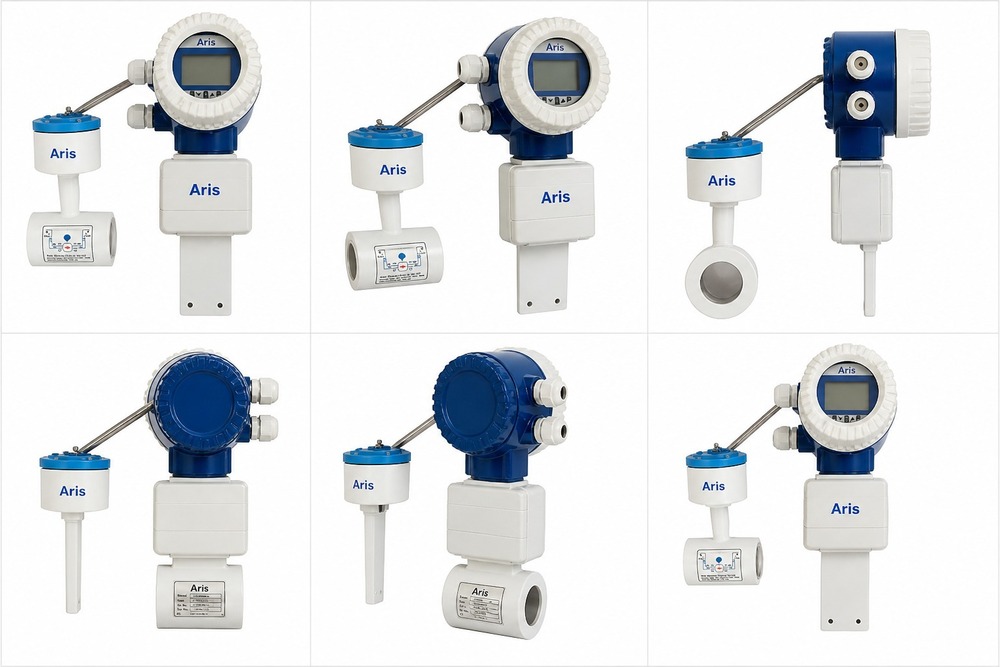

Remote Mount Electromagnetic Flow Meter

Remote Mount Electromagnetic Flow Meter Price And Quantity

• Price 2500 INR/Piece
• Minimum Order Quantity 1 Piece

Remote Mount Electromagnetic Flow Meter Product Specifications

• Mounting Remote Mount
• Current Range 4-20 mA output
• Language English
• Sensitivity High
• Model Remote Mount Electromagnetic Flow Meter
• Capacity Varies with diameter
• Resolution Selectable, up to 0.001 m3/h
• Dimension (L*W*H) Varies by Model
• Connecting Type Flange / Threaded (optional)
• Length Standard and Customized sizes
• Pressure Range Up to 16 bar
• Output 4-20 mA, Pulse, RS485, HART
• Storage Temperature -40C to +70C
• Signal Type Analog & Digital
• Response Time < 1 Sec
• Diameter DN15 to DN600
• Input From sensor electrode
• Color White and Blue
• Connectivity Type 4-20 mA / Pulse / RS485 / HART
• Flow Rate 0.5 m3/h to 10,000 m3/h
• Protection IP65 / IP67 / IP68 (optional)
• Measuring Units m3/h, L/min, gpm
• Sensor Type Electromagnetic
• Frequency 50-60Hz
• Display Type LCD Digital Display
• Accuracy 0.5% of reading
• Housing Material Aluminum Alloy / SS
• Humidity % 95% RH (non-condensing)
• Process Connection Flanged / Threaded / Customized
• Connector Terminal or cable gland
• Velocity Range 0.1 m/s to 15 m/s
• Power Consumption < 20VA
• Operating Temperature -20C to +60C
• Material Body: SS, Lining: PTFE/PU/Rubber
• Measurement Range 0.1 m/s to 15 m/s
• Application Media Conductive Liquids, Water, Slurry, Chemicals
• Power Supply 85-265V AC, 24V DC
• Temperature Range -20C to +60C
• Equipment Type Electromagnetic Flow Meter
• Stability High measurement stability
• Range 0.5 m3/h to 10,000 m3/h

• Alarm Functions Empty pipe, Flow upper/lower limit, System error
• Lining Thickness As per ISO 4064/BS EN 14154
• Display Resolution 128x64 graphical LCD
• Ambient Temperature -25C to +55C
• Electrode Material SS316 / Hastelloy / Titanium / Tantalum (option)
• Weight Varies by diameter and configuration
• Cable Length (Remote) Standard 10m (customizable)
• Power Frequency 50/60 Hz automatic adaptation
• Ingress Protection IP68 for sensor (on request)
• Data Logger Optional

Remote Mount Electromagnetic Flow Meter Trade Information

• FOB Port ALL india
• Payment Terms Cash Advance (CA), Cash in Advance (CID)
• Supply Ability 500 Piece Per Month
• Delivery Time 7 Days
• Sample Policy Contact us for information regarding our sample policy
• Main Export Market(s) Asia
• Main Domestic Market All India
