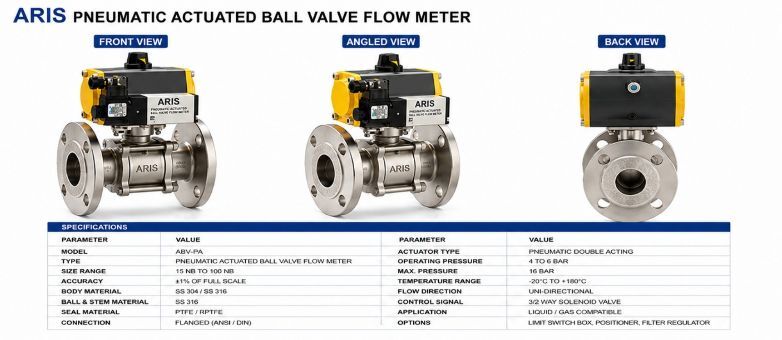

Pneumatic Actuated Ball Valve Flow Meter

Pneumatic Actuated Ball Valve Flow Meter Price And Quantity

• Minimum Order Quantity 1 Piece
• Price 25000 INR/Piece

Pneumatic Actuated Ball Valve Flow Meter Product Specifications

• Temperature Range -20C to +80C
• Dimension (L*W*H) Varies per model
• Range 0.5 m3/h - 1000 m3/h
• Input Pneumatic signal 5.5 Bar
• Velocity Range 0.3 - 8 m/s
• Load Capacity Up to 20 Bar
• Length Standard
• Capacity Up to 20 Bar
• Flow Rate 0.5 m3/h - 1000 m3/h
• Storage Temperature -40C to +100C
• Response Time < 1 sec
• Power Supply 230 V AC/24 V DC
• Diameter DN15 - DN200
• Application Media Liquid, Gas, Steam
• Signal Type Analog/Digital
• Frequency 50/60 Hz
• Process Connection Flanged as per ASME/ANSI/DIN
• Model ARIS
• Pressure Range Up to 20 Bar
• Connector M12/terminal
• Sensor Type Electromagnetic/Turbine
• Resolution 0.01 m3/h
• Power Consumption 10 W
• Current Range 4-20 mA
• Display Type Digital
• Housing Material Aluminum/SS316
• Mounting Flanged/Threaded
• Connectivity Type Wired
• Protection IP67
• Operating Temperature -20C to +80C
• Connecting Type Flanged, Screwed
• Cut Size DN15 - DN200
• Accuracy 1%
• Measurement Range 0.5 m3/h - 1000 m3/h
• Stability 0.2%
• Material Stainless Steel SS316
• Sensitivity High
• Humidity % 0-95% RH non-condensing
• Equipment Type Pneumatic Actuated Ball Valve Flow Meter
• Language English
• Measuring Units m3/h
• Output 4-20 mA, Pulse
• Color Silver

• Suitable Fluids Water, Oils, Chemicals
• Max Permissible Pressure Loss < 0.025 MPa
• Repeatability 0.2%
• Sealing Material PTFE/Viton
• Actuator Type Double Acting/Spring Return Pneumatic
• Power Cord Length 1.5 meters
• Valve Type Two Way Ball Valve
• Body Finish Electro Polished

Pneumatic Actuated Ball Valve Flow Meter Trade Information

• FOB Port ALL india
• Payment Terms Cash Advance (CA), Cash in Advance (CID)
• Supply Ability 100 Piece Per Month
• Delivery Time 7 Days
• Sample Policy Contact us for information regarding our sample policy
• Main Export Market(s) Asia
• Main Domestic Market All India
