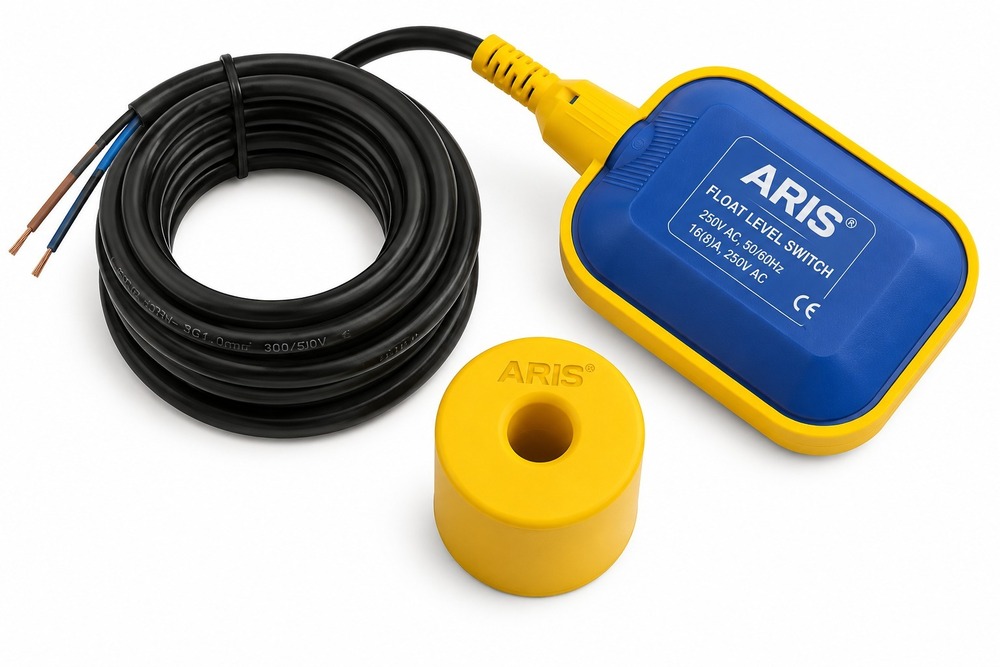

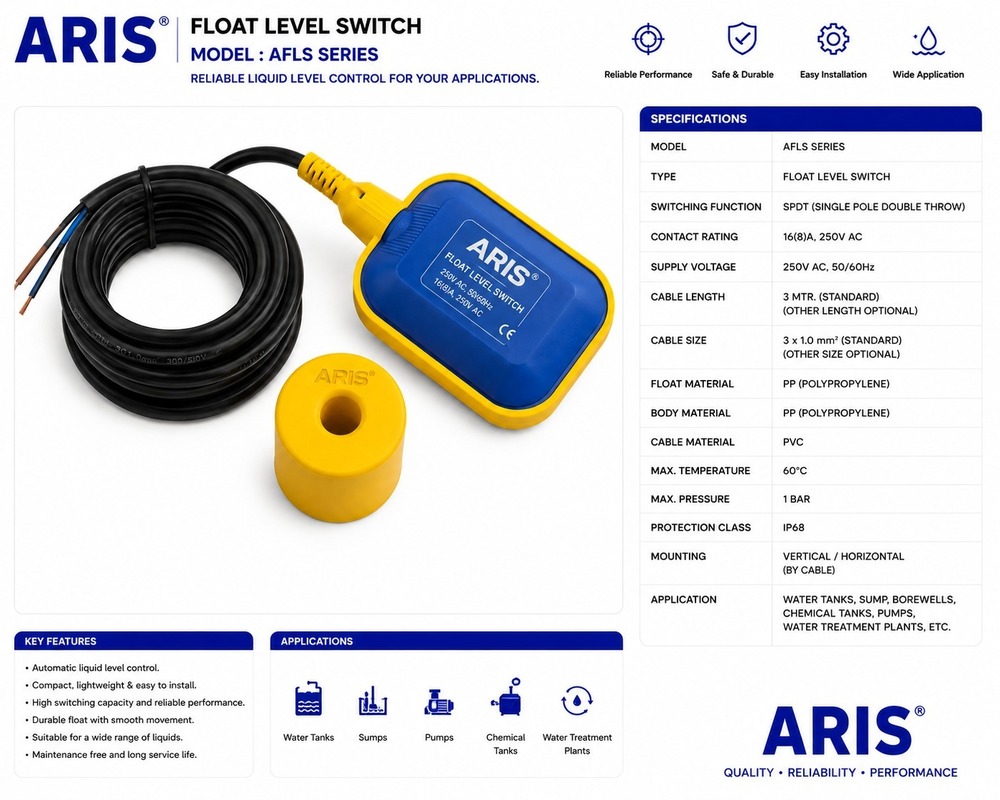

Float Level Switch

Float Level Switch Price And Quantity

• Minimum Order Quantity 1 Piece
• Price 1000 INR/Piece

Float Level Switch Product Specifications

• Insulation Box Yes
• Product Type Float Level Switch
• Weight Approx. 380g
• Resistant Feature Corrosion resistant, waterproof
• Protection System IP68 Waterproof
• Size Standard, customizable
• Accuracy 5mm switching difference
• Color yellow
• Usage & Applications Water tank, sump, industrial liquid level monitoring, pumps automation
• Frequency (MHz) 50/60 Hz
• Material High-quality Polypropylene (PP)
• Pressure 1 MPa
• Operating Temperature -20C to 80C
• Measuring Voltage Range 220V AC (commonly 110-250V AC/DC)
• Dimension (L*W*H) 120mm x 85mm x 55mm (approx.)

• Electrical Life 100,000 cycles
• Application Media Clean water, light chemicals, non-flammable liquids only
• Mounting Method Suspension mount with counterweight
• Cable Length 2 meters, customizable
• Float Material PP/ABS
• Contact Capacity 10(8)A 250V AC
• Mechanical Life 500,000 cycles
• Cable Material Neoprene rubber
• Ambient Humidity Up to 95% RH (non-condensing)
• Switching Difference Adjustable within 0.3 to 1.0m

Float Level Switch Trade Information

• FOB Port ALL india
• Payment Terms Cash Advance (CA), Cash in Advance (CID)
• Supply Ability 1000 Piece Per Month
• Delivery Time 7 Days
• Sample Available Yes
• Sample Policy Contact us for information regarding our sample policy
• Main Export Market(s) Asia
• Main Domestic Market All India
