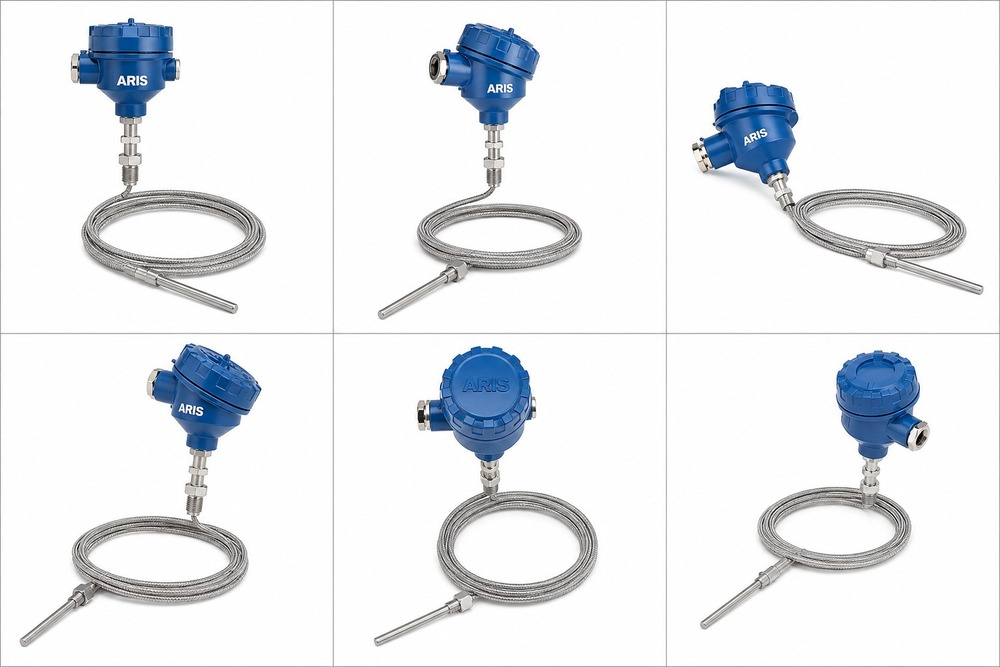

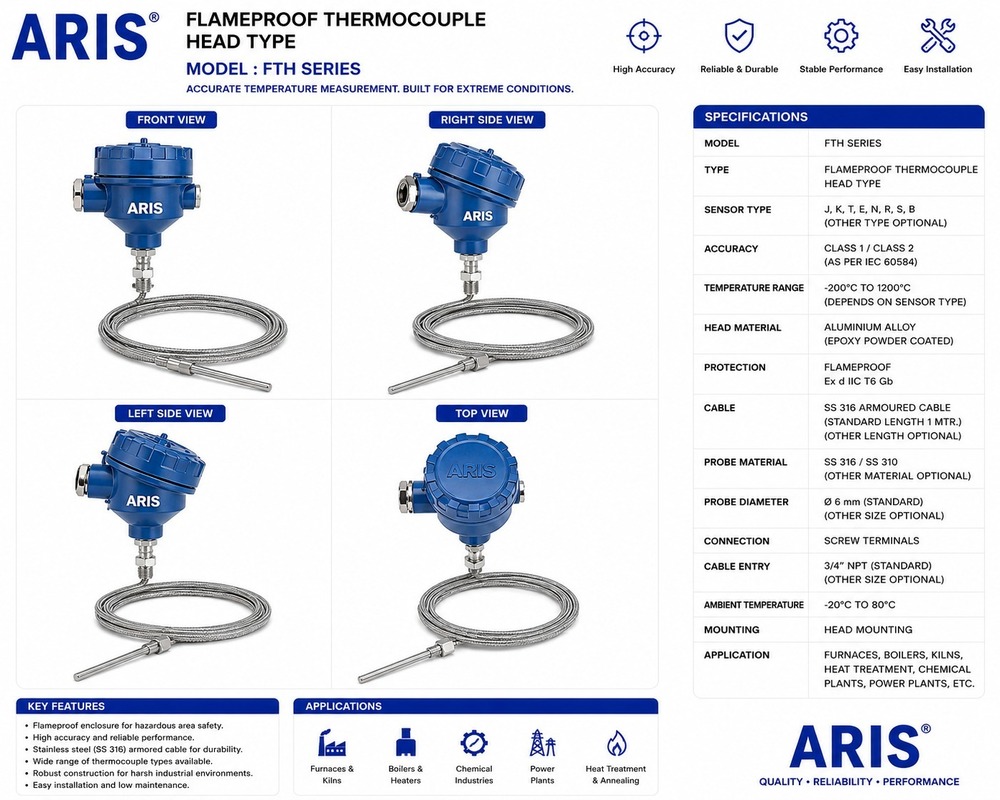

Flameproof Head Type Thermocouple Sensor

Flameproof Head Type Thermocouple Sensor Price And Quantity

• Price 600 INR/Piece
• Minimum Order Quantity 1 Piece

Flameproof Head Type Thermocouple Sensor Product Specifications

• Sensor Type Type J, K, T, R, S (as per requirement)
• Temperature Range -40C to 1200C (depending on sensor type)
• Type Flameproof Head Type Thermocouple
• Precision Class 1 or Class 2 per IEC 60584
• Measuring Range 0C to 1200C
• Usage Temperature Measurement in flameproof/ hazardous environments
• Theory Seebeck Effect (Thermoelectric)
• Tolerance 2C or as per IEC standards
• Tensile Strength High mechanical strength, suitable for industrial mounting
• Density 8.0 Gram per cubic centimeter(g/cm3)
• Wire Length 1 meter (customizable options available)
• Melting Point Depends on element; up to 1300C for K-type
• Material Nickel alloys/SS304/SS316 housing and sheath
• Customized Yes, available as per order
• Size Standard sizes available: 6mm, 8mm, 10mm, 12mm diameter (customizable)
• Protecting Tube Material Stainless Steel 304/316
• Connection Method Head-mounted terminal block

• Cold Junction Compensation Optional
• Explosion Proof Certification ATEX/IS Certified for hazardous locations
• Spring Loaded Available on request for improved contact
• Ambient Operating Temperature -40C to +85C (for head)
• Ingress Protection IP65/IP66 (flameproof head)
• Head Material Aluminum, die-cast, powder coated
• Calibration Factory calibrated with certificate (on request)
• Mounting Type Pipe/Surface/Direct Mount
• Sheath Length Standard and custom up to 3 meters
• Response Time <10 seconds (in air)
• Cable Entry 3/4-inch NPT/Metric Thread
• Output Signal mV (millivolt) as per thermocouple type

Flameproof Head Type Thermocouple Sensor Trade Information

• FOB Port ALL india
• Payment Terms Cash Advance (CA), Cash in Advance (CID)
• Delivery Time 7 Days
• Sample Available Yes
• Sample Policy Contact us for information regarding our sample policy
• Main Export Market(s) Asia
• Main Domestic Market All India
